Spark OES · Mobile spectrometers · Carbon & sulfur analyzers
Metal Analysis Instruments for Your Actual Testing Task
JIEBO manufactures and supplies instruments for elemental analysis of metals, with application support for industrial users and instrument distributors.
Explore our product lines, or start with the material, elements and sample conditions you need to evaluate.
Product lines
Start with the Right Product Line
Our product range includes spark optical emission spectrometers, mobile spectrometers and high-frequency infrared carbon and sulfur analyzers. The appropriate model and configuration depend on your testing requirements—not the product category alone.

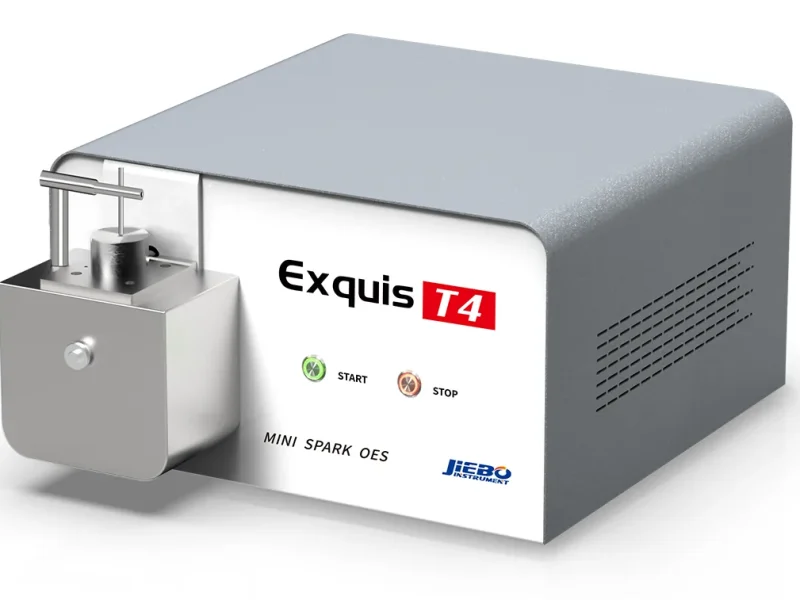

Exquis T4 Spark Optical Emission Spectrometers
Spark optical emission spectrometer that uses a sealed-cycle optical chamber to detect over 50 elements in a wide range of metal bulk samples, positioned for metal fabrication and processing companies.
- Matrix
- Fe, Al, Cu, Zn etc.
- Optical System
- Paschen-Runge mounting
- Grating Focal Length
- 401mm
Exquis T4 Pro Spark Optical Emission Spectrometers
Compact full spectrum optical emission spectrometer with sealed-cell argon-filled circulation in its optical chamber, suited for routine elemental analysis of ferrous and non-ferrous metal samples and powered by a 1000 Hz fully digital excitation source.
- Detectable matrix
- Fe,Al,Cu,Ni,Co,Mg,Ti,Zn,Pb,Sn,etc.
- GRADE database
- Included
- Light source type
- Programmable digital light source

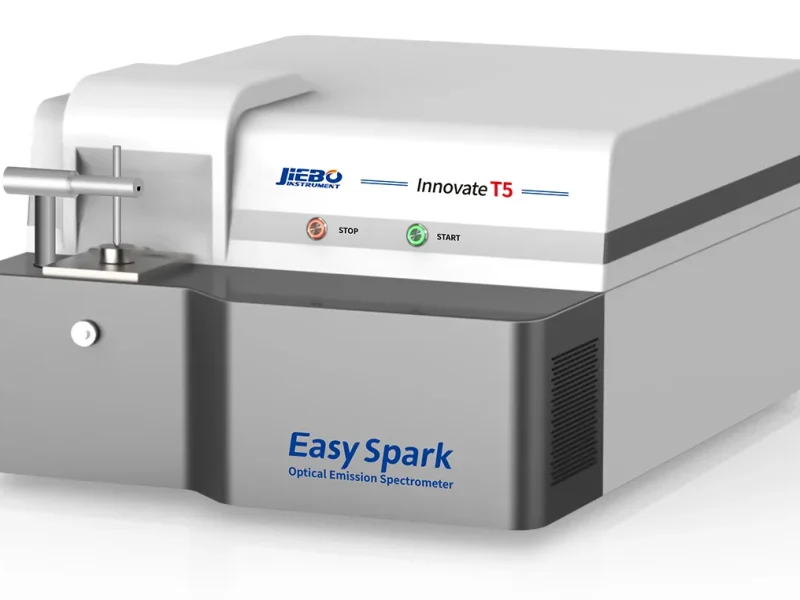

Innovate T5 Spark Optical Emission Spectrometers
Full spectrum optical emission spectrometer with an optical vacuum system and fully digital excitation source, designed for growing metalworking enterprises, automotive component suppliers and foundries, with a three-side open excitation stage for complex-shaped samples.
- Detectable matrix
- Fe,Al,Cu,Ni,Co,Mg,Ti,Zn,Pb,Sn,etc.
- GRADE database
- Included
- Light source type
- Programmable digital light source

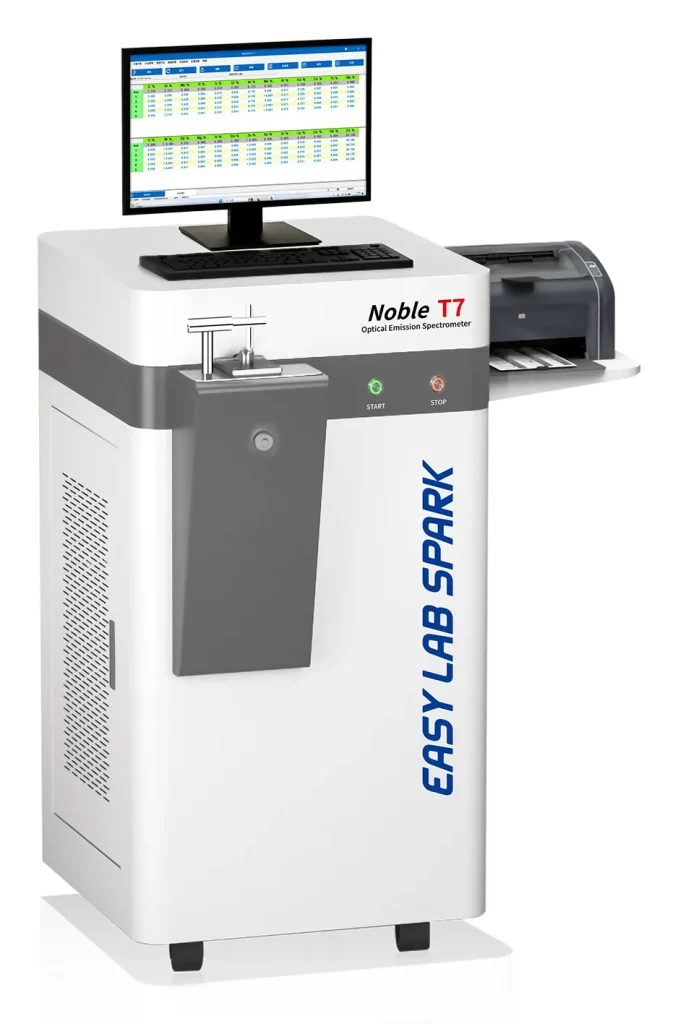

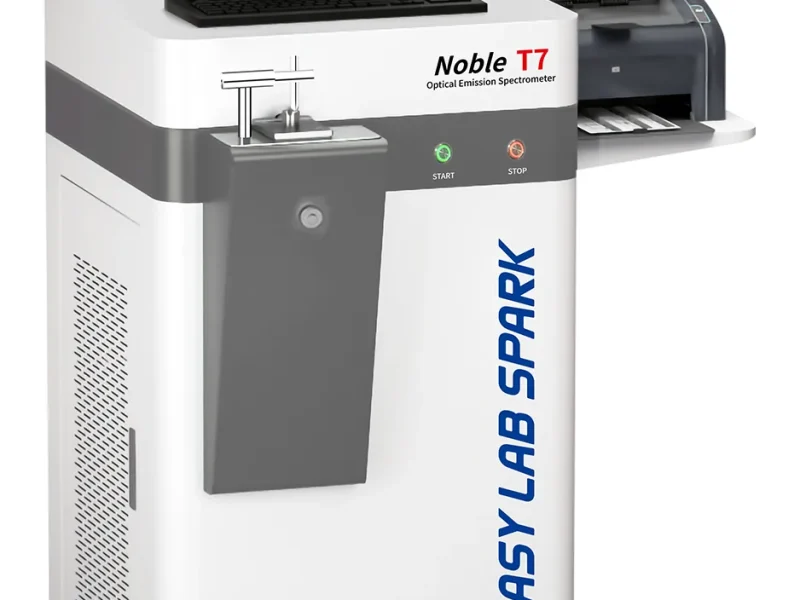

Noble T7 Spark Optical Emission Spectrometers
Full spectrum optical emission spectrometer for high-precision elemental analysis of solid metal samples from trace to high-concentration levels, with a 120–800 nm spectral range for non-metallic elements in the deep ultraviolet region.
- Detectable matrix
- Fe,Al,Cu,Ni,Co,Mg,Ti,Zn,Pb,Sn,etc.
- GRADE database
- Included
- Light source type
- Programmable digital light source

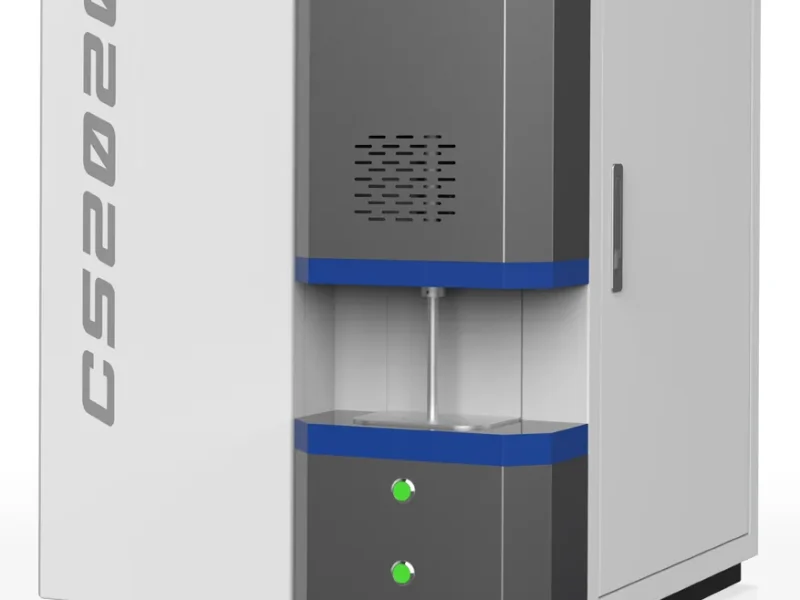

CS2020 High-Frequency Infrared Carbon & Sulfur Analyzers
High-frequency infrared carbon & sulfur analyzer for carbon and sulfur in steel, ores, finished metals and other inorganic materials, with four physical detection cells covering low and high carbon/sulfur ranges.
- Detection Range
- Low Carbon: 0.00001% ~ 0.5%; High Carbon: 0.1% ~ 99.99%; Low Sulfur: 0.00001% ~ 0.5%; High Sulfur: 0.1% ~ 99.99%
- Analytical Precision
- C: 0.001mg (1ppm) or 0.5% RSD (one of the two); S: 0.001mg (1ppm) or 0.5% RSD (one of the two)
- Sensitivity
- C: 0.00001%; S: 0.00001%

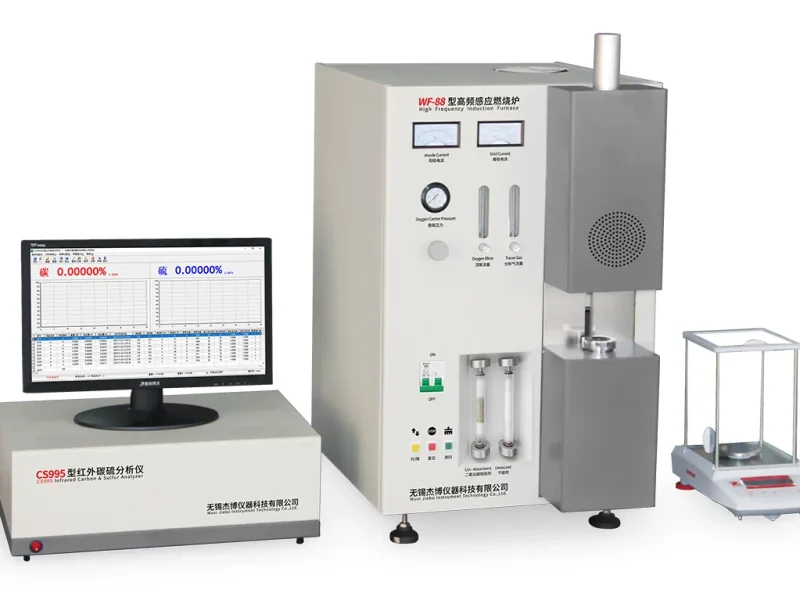

CS995 High-Frequency Infrared Carbon & Sulfur Analyzers
High-frequency infrared carbon and sulfur analyzer with a bench type detector and bench type high-frequency oven for space saving, simultaneously analyzing carbon and sulfur in solid materials.
- Appearance
- Bench type detector with bench type high-frequency oven for space saving
- Scope of Analysis
- C: 0.0005%-6.0000%; S: 0.0005%-0.3500%
- Furnace Power
- 2.2 KW

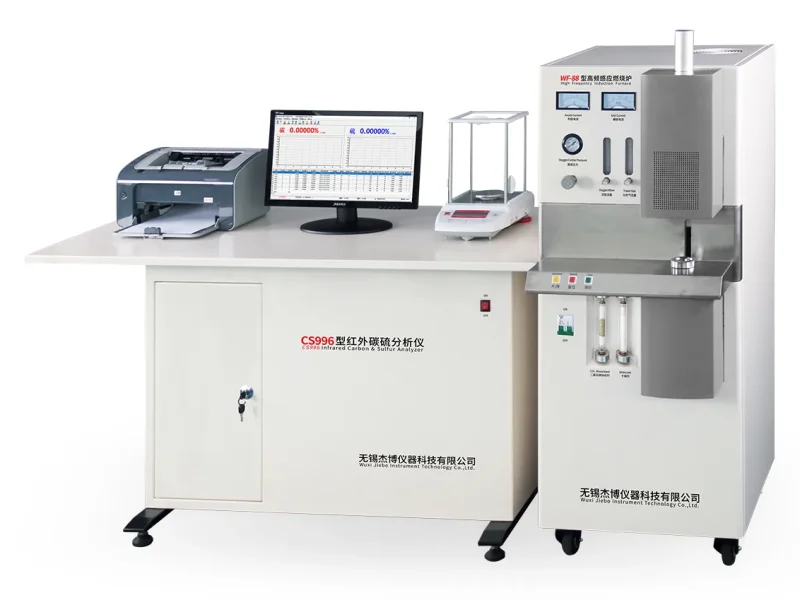

CS996 High-Frequency Infrared Carbon & Sulfur Analyzers
High-frequency infrared carbon and sulfur analyzer with an operating table design and matching vertical high-frequency furnace, simultaneously analyzing carbon and sulfur in solid materials, with expandable low-carbon and high-sulfur pools.
- Appearance
- The operating table design, matching vertical high-frequency furnace
- Scope of Analysis
- C: 0.0001%-10.0000%; S: 0.0001%-2.0000%
- Furnace Power
- 2.5 KW
About
Meet JIEBO
Wuxi Jiebo Instrument Technology Co.,Ltd. works with metal manufacturing and processing businesses, foundries, component suppliers, quality laboratories and instrument distributors.
Our business combines instrument manufacturing and sales with related configuration, accessories and after-sales support. Learn who is behind the instruments and how to discuss a specific application with us.
How to start
From a Testing Requirement to a Defined Scope
Clarify the application
Start with the material, target elements, required ranges and sample form. A model name is helpful, but it is not a substitute for describing the task.
Clarify the purchase
Review the proposed model, configuration, included items and installation arrangements before comparing quotations or placing an order.
Clarify the support
For an existing instrument, begin with the model, configuration and the help you need. Installation, training, maintenance and upgrade requests need a clearly defined scope.
Distributors
Build Your Metal Analysis Product Line with JIEBO
Already serving industrial or laboratory customers? Discuss instrument supply, technical collaboration and the responsibilities needed to support a real project in your market.
Tell Us What You Need to Confirm
Share your material, testing goal and any known sample or configuration requirements. You do not need to choose a model before starting the conversation.
